220 MHz Quad made from 1/2" CPVC
Menu  >  >  >
|

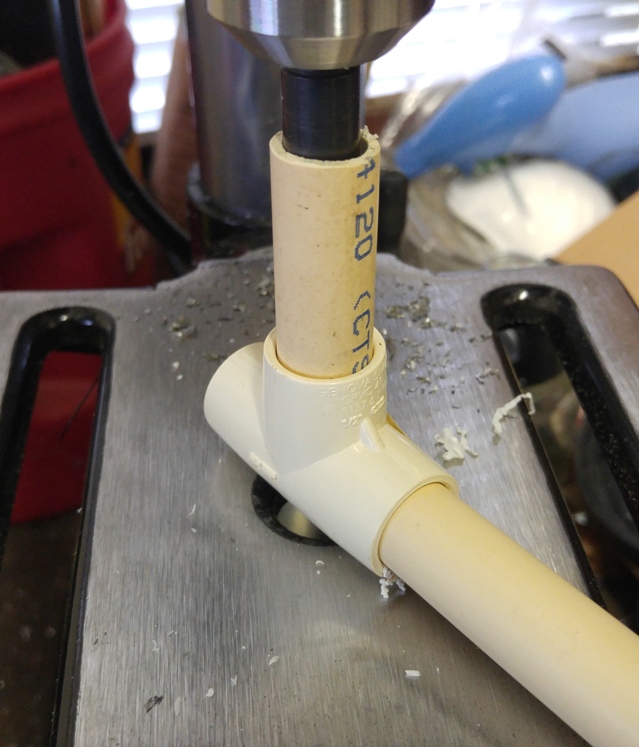

A couple of Tee's will need a 4th hole drilled & enlarged

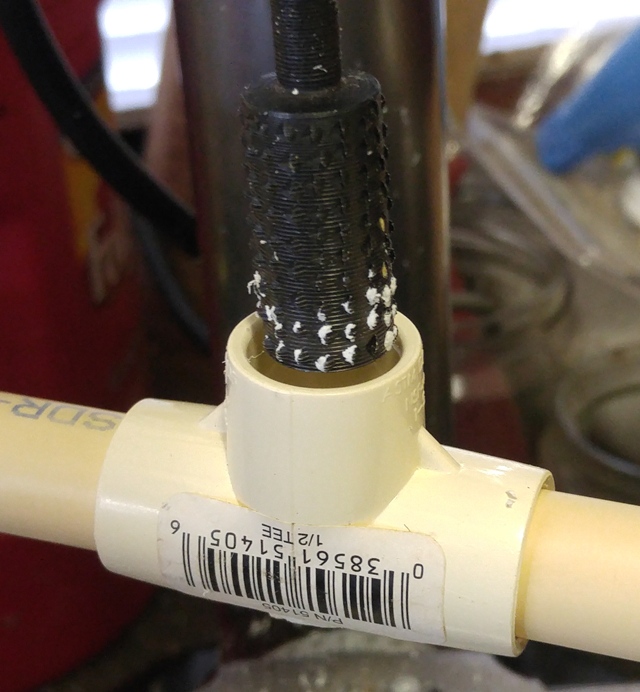

Original stop & 4th side will need grinding out

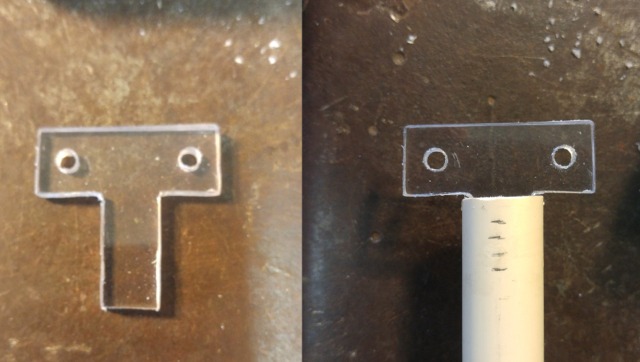

Hook-up Tees will need to be made from Plexan, Plexiglass, etc.

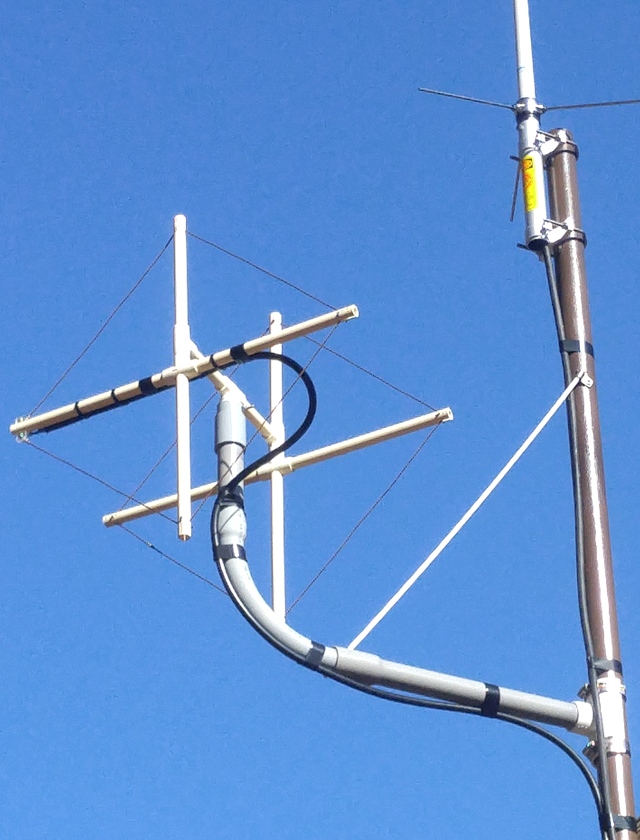

I used larger PVC with a 90° conduit as a stand off with a fiberglass rod
to hold up the weight of the antenna.  PVC is not very strong supporting
horizontal weight in hot sunny weather.

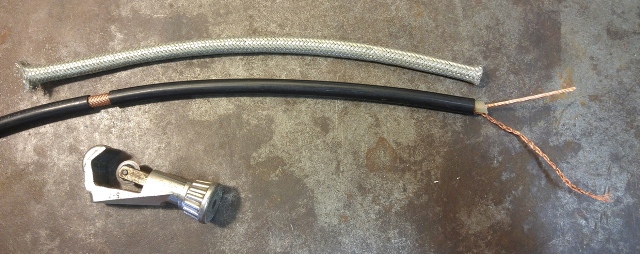

I used a Bazooka Balun at the feed point of the antenna. Below is the

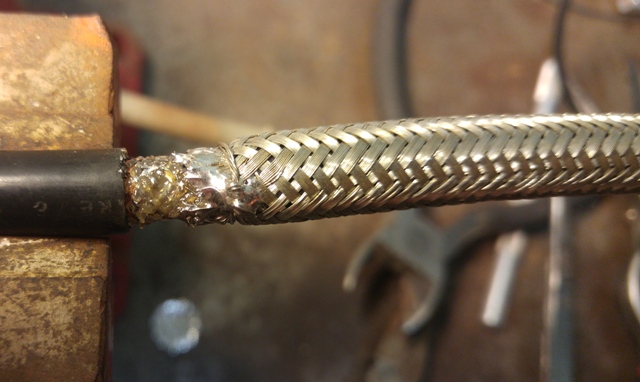

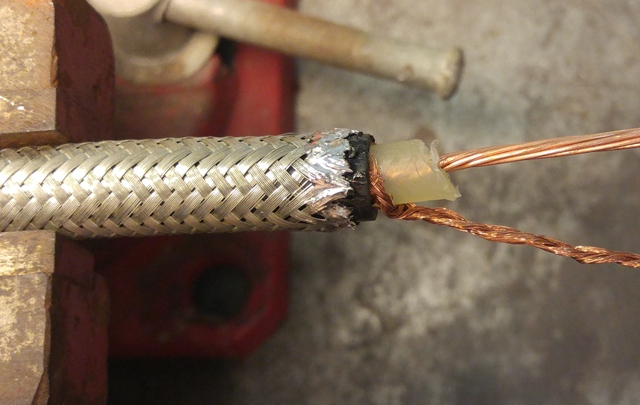

end of the coax, then soldering the left and then soldering the right side.

*

*

*

☺

*

*

*

*

☺
*
